Product
Inspire XT™ RGBW
The Chroma-Q® Inspire XT™ LED house light is the most powerful fixture in the range, delivering up to 9,500 lumens. Including all the features of the Inspire™ & Inspire Mini™ with twice the output, it is ideal for situations that require the same high-quality white and coloured lighting with even more output. In addition, it uses some of the innovative core technologies found in other award-winning Chroma-Q® products.
All Inspire models in the range provide a choice of beautiful whites, soft pastels and bold saturates —all from one fixture. By incorporating industry standard DMX-512 control, the Inspire is able to integrate seamlessly with an existing DMX infrastructure and can be controlled by any DMX-supported lighting console. With fully homogenised colour mixing and a choice of three different beam spreads, the Inspire XT™ provides an excellent selection of stunning mixed colours and ‘true’ whites, with no unsightly colour separation shadows. It also features an energy-efficient LED design providing reduced maintenance and running costs.
Key Features
- Fully homogenised beam
- High-quality white lighting and RGBW colour-mixing
- Beautiful whites, soft pastels and bold saturates – all from a single fixture
- Ideal for house light replacements
- Seamlessly integrate stage & house lighting
- Convection cooled for quiet operation
- Extremely smooth, uniform output
- Theatrical grade dimming
- Powerful – up to 9,500 lumens
- Holographic spread lenses included allowing for three beam spreads
- Adjustable 1,000K to 10,000K CCT
- High CRI of 90
- Exceptional fixture-to-fixture consistency
- Made in North America
- Built-in power supply
- Low energy consumption
This product replaces the Inspire™ RGBW.
Product Videos
Watch tutorials and use cases to see this product in action.

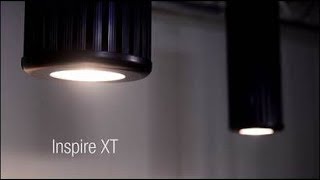

Chroma-Q® Inspire XT™ RGBW LED House Light
Chroma-Q® Inspire XT™ RGBW LED House Light
Chroma-Q® Color Force II™ & Inspire™
Chroma-Q® Color Force II™ & Inspire™
Chroma-Q® Inspire XT™ RGBW LED House Light
Chroma-Q® Inspire XT™ RGBW LED House Light
Inspire XT™ RGBW
Product Information
Multi-Purpose
Fusing entertainment, theatrical and architectural lighting capabilities, the Inspire™ has the ability to seamlessly transform the look and feel of a performance venue, themed retail space, or house of worship.
A Truly Creative Tool
Whether used in entertainment, architectural, or house of worship context, the Inspire™ provides designers with a tool to create environments that seamlessly transcend the physical barrier between the stage and audience through the creative use of light and colour. With Inspire, effects can range from a subtle shift in colour temperature to bold and dynamic colour changes.
Colour
With RGBW colour mixing providing a high CRI of up to 90, the Inspire can achieve extremely accurate colour matching.
Convection Cooled
Inspire™ fixtures are passively cooled and have no fans or fan noise for quiet operation. Their low energy consumption means that they generate low amounts of heat.
DMX-512 Control
Using the Inspire™ house light’s DMX-512 input, it is now possible to seamlessly map ceiling lighting, introducing gorgeous soft colour effects and warm amber looks to engage and captivate the room.
Camera Friendly
With an adjustable frequency from 1,200 – 9,600Hz, the Inspire™ house light is extremely camera-friendly and can be adjusted to eliminate camera flicker and lens glare.
Optics & Dimming
The Inspire’s custom optical design provides a smooth, uniform output, matched by theatrical grade dimming.
| Product Code | CHINHLRGBWXT / CHINHLRGBWXTW / CHINHLRGBWA.. |
|---|---|
| Net Dimensions (WxHxD) | 181mm x 557mm x 181mm / 7″ x 22″ x 7″ |
| Net Weight | 7.5 kg / 16.5 lbs |
| Shipping Dimensions (WxHxD) | 305mm x 661mm x 305mm / 12″ x 26″ x 12″ |
| Shipping Weight | 9.5 kg / 21 lbs |
| Power & Connections | |
| Power Supply | Built-in |
| Power Input Rating | 100-240V AC 50-60Hz 120VA |
| Power Factor | 0.9 |
| Power Consumption | 135W @230W (Maximum Intensity) 7.5W @230W (Stand-By) Addressing 135W @240W (Maximum Intensity) 7.5W @240W (Stand-By) |
| Residual current (max) | 0.49mA |
| Idle Power Consumption | 6.2 W @110V, 7.5W @220V |
| Power Connectors In/Out | Terminal Block: plug-in screw connector (Input only) |
| Data Connector In/Out | Terminal Block: plug-in screw connector Addressing: XLR 5 Pin |
| Max cable run | N/A |
| Operating Temperature | 0°C to 40°C |
| Control Protocol | ANSI E1.11 USITT DMX 512-A |
| Cooling System | Convection |
| Construction | Anodised aluminium extrusion |
| Colour | Black / White |
| Built-In Hardware | Mounting bracket (12.7mm / 1/2″ diameter hole) |
| IP Rating | IP20 |
| Approvals | CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2004 / FCC Part 15 Subpart B:2010, CSA C22.2 No. 166-M1983: R2008, UL 1573:2003 (R2010), IEC 60598-2-17 |
| Earth leakage | 0.49mA |
| Control & Photometrics | |
|---|---|
| Control Modes | RGBW Single (up to 4 ch x fixture count in system), RGBW Output (4 ch per output – 4, 8 or 12 ch), Tungsten (1 ch per data output), 0-10V, Look Recall, Alarm, Emergency Addressing: 7 channels fxHSI, 5 channels sRGBW, 3 channels HSI, 4 channels RGBW, 1 channel Look sel, Mastr StndAlon, Slave StndAlon |
| Dimming Curve | Theatrical |
| Variable Effects Engine | Yes |
| Effects Parameters | Colour speed, range, step, intensity effects |
| Hot Lumen Output | Up to 9,500 |
| Optics | Fully homogenised |
| Beam Angle | Approx 32° (Narrow lens), Approx 42° (Medium lens), Approx 65° (Wide lens) |
| Beam Distribution | Symmetrical direct illumination |
| CCT | Adjustable 1,000 – 10,000K |
| Colour Gamut | Performance enhanced |
| CRI | 90 |
| TLCI | 70 |
| Sound level | 32 db |
| Lamp Life | L70 at 50,000 hours |
- CHINTHB: Top Hat/Snoot for Inspire (Black)
- CHINTHW: Top Hat/Snoot for Inspire (White)
- CHINYK: Yoke Mount Kit for Inspire (Black)
- CHINYKW: Yoke Mount Kit for Inspire (White)
- CHINBDB: Barndoor for Inspire (Black)
- CHINBDW: Barndoor for Inspire (White)
- CHINSIK15B: Blind Sloped Ceiling Kit – 0 TO 15 Degree Angle (Black Trim)
- CHINSIK15W: Blind Sloped Ceiling Kit – 0 TO 15 Degree Angle (White Trim)
- CHINSIK30B: Blind Sloped Ceiling Kit – 20 TO 30 Degree Angle (Black Trim)
- CHINSIK30W: Blind Sloped Ceiling Kit – 20 TO 30 Degree Angle (White Trim)
- CQ632-9120: Blind Ceiling Mount Kit (Black)
- CQ632-9121: Blind Ceiling Mount Kit (White)
Inspire XT™
- Brochure Inspire XT™ Brochure (English)
- Software Inspire XT™ Software v2
- Exploded Diagram Inspire XT™ Exploded Diagram Ver E
- IES Inspire XT™ IES
- CAD 2D/3D Inspire XT™ CAD Symbol
- Certificates Inspire XT™ Declaration of Conformity
- Certificates Inspire XT™ Declaration of Origin
- IES Inspire XT™ Photometric Table v 3-27-22
- CAD 2D/3D Inspire XT™ 2D Symbols DWG
- CAD 2D/3D Inspire XT™ 3D Symbols DWG
- Spec Sheet Inspire XT™ Architectural Specifications
- CAD 2D/3D Chroma-Q® VectorWorks Symbols
- User Manual Inspire XT™ Terminal Strip User Manual V2.12
- Spec Sheet Inspire XT™ Spec Sheet (V1.4)
- Quick Start Guide Spreader Lens Accessory Kit Quick Start Guide V3
- Quick Start Guide Inspire™ Terminal Strip Quick Start Guide V3.2
- Exploded Diagram Inspire XT™ Terminal Strip Line Drawing (DWG + PDF - ZIP)
- Quick Start Guide Inspire™XT Quick Start Guide V3.0
- Spec Sheet Inspire XT™ RGBW Addressing v1.2
- Exploded Diagram Inspire XT™ Addressing Exploded Drawing
- CHINHLRGBWXT
- CHINHLRGBWXTW
- CHINHLRGBWA
Disclaimer: Chroma-Q® operates a policy of continuous development. Apex reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details chroma-q.com.
For support, visit: chroma-q.com/support
