BUILT ON THE LATEST CRMX TIMOTWO TECHNOLOGY

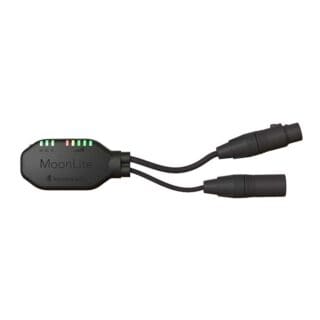

MoonLite™ is built on LumenRadio’s patented reliable CRMX technology and boasts new features such as:

• Bluetooth connectivity
• Control and configure your Moonlight through the CRMX toolbox app
• Smarter disturbance detection technology, allowing for even more stable connectivity
• Significantly reduced RF footprint with dynamic transmissions

With built-in support for Bluetooth connectivity, MoonLite™ enables tablet and phone-based lighting control software to connect directly without the need for extra hardware. MoonLite™ is a state-of-the-art transceiver; thanks to its small size, built-in battery, and dual XLR connectors it is ideal for use at clubs, small stage events, corporate events, in theaters, and temporary events where wireless DMX connectivity is needed.

MoonLite™ has the same reliable functionalities as all LumenRadio’s CRMX products, but is updated with even smarter disturbance detection technology, allowing for even more stable connectivity – and it comes in a much smaller package.

For more information on TIMOTWO

What better way to control and configure your MoonLite™ than from the palm of your hand? Using our new CRMX Toolbox app you can quickly identify your Moonlite™, check battery status, conduct firmware updates, toggle between receiver and transmitter mode, change output power and much more. The new era of wireless DMX is finally here!

Download in the APP Store:

• Apple
• Google Play

• DMX: 2 XLR, 5-pin gold plated, female and male
• Antenna: Internal
• DC: USB Micro-B

• Low voltage input: 5VDC

• Operational frequency range:
  • 2402-2480 MHz
• Output power levels:
  • 10dBm, 14dBm,
  • 18dBm, 20dBm,
  • 22dBm (only in US)
  • 24dBm (only in US)

• USITT DMX512, DMX512(1990) & DMX512-A
• Bluetooth 5.0

Charging Your MoonLite

When your MoonLite is running low on battery, it can be easily recharged using the built-in Micro USB port.

Compatible Chargers:

• Any standard 5V USB charger
• Minimum output: 500mA

Not Compatible:

• Smart chargers or adapters with multiple voltage outputs
• (These may damage the device or prevent proper charging.)

Charging Time:

• Fully charges in approximately 3 hours

This item has been discontinued as of October 2025. MoonLite2™ replaces MoonLite.
